What is High Pressure Die Casting?
High-pressure die casting is a process in which molten metal is forced under pressure into a securely locked metal die cavity, where it is held by a powerful press until the metal solidifies. After solidification of the metal, the die is unlocked, opened, and the casting ejected. After removal of the casting, the die is closed and locked again for the next cycle. The injection of metal into the die cavity is completed in a fraction of a second. Often, while the molten metal is still held in the die, extremely high pressure is applied (called intensification pressure). This high pressure compresses any gas entrapped in the metal and feeds additional metal into the cavity to compensate for the shrinkage of the metal as it solidifies.
Key Strengths in Precision Die Casting
Wide Range of Equipment (88T-2000T)
Our equipment ranges from 88 to 2000 tons, enabling flexible production for both small precision parts and large complex components, meeting the demands of diverse projects with reliable capacity.
Robotic Manufacturing
By integrating robotic arms and automated production technology, we ensure a highly efficient and precise manufacturing process, achieving high standards in product consistency and quality.
Quality Assurance System

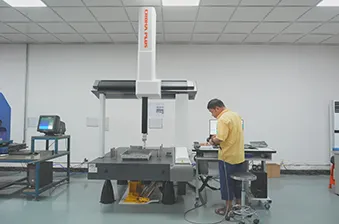

Supported by advanced equipment like X-ray inspection and CMM, along with strict quality control processes, we ensure each production batch meets rigorous industry standards and customer specifications.

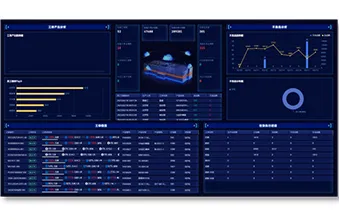

MES System Management
Our MES system provides real-time production monitoring and data tracking, creating a transparent production process with optimized efficiency, ensuring timely project delivery and controlled production workflows.

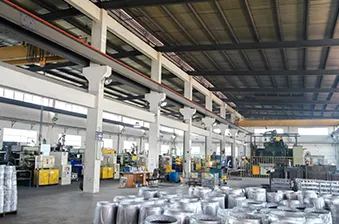

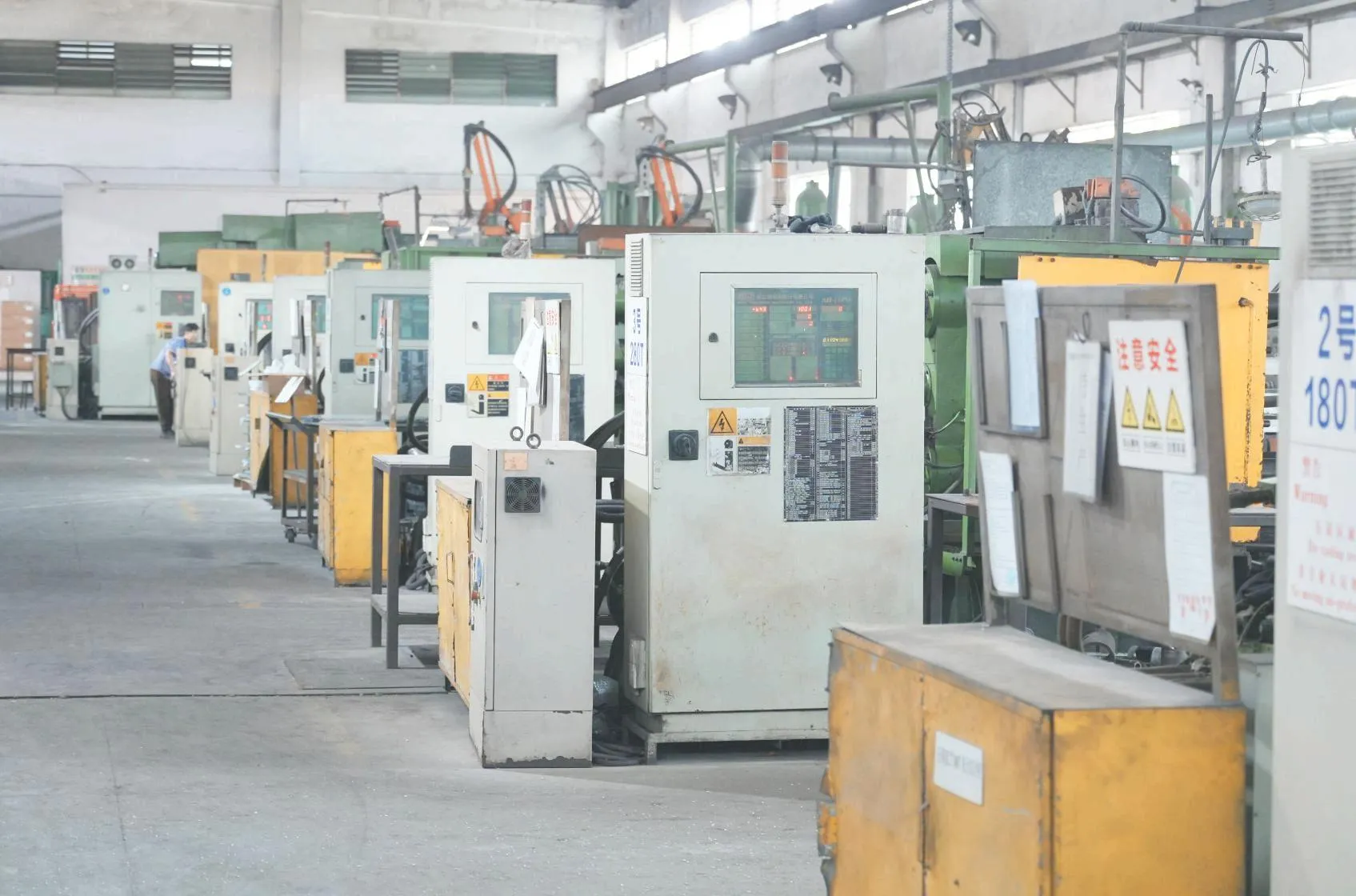

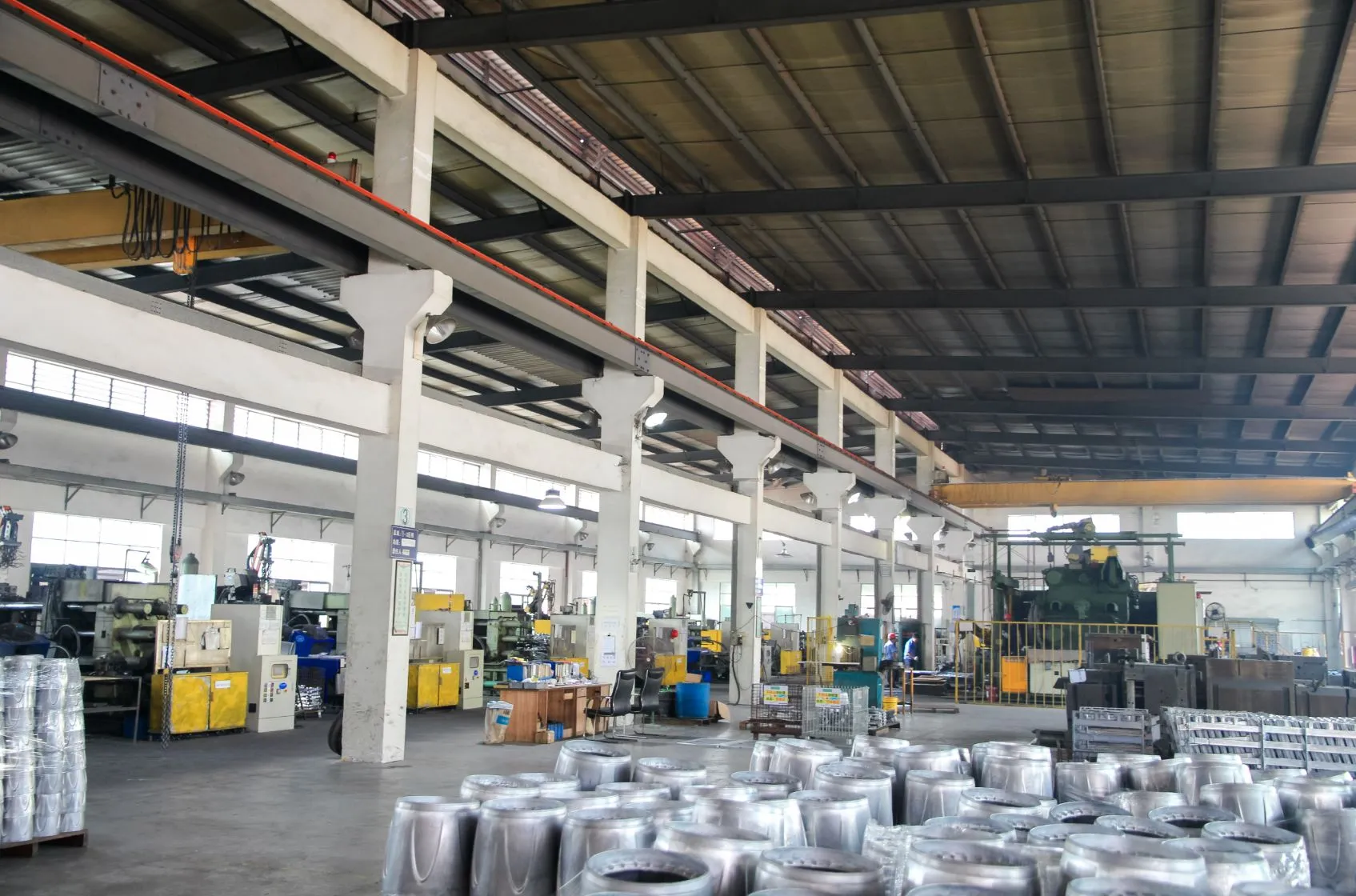

Die Casting Manufacturing Workshops
YuHui Die Casting is equipped with advanced die casting machines ranging from 88T to 2000T, enabling us to handle projects of various sizes with flexibility. We are capable of producing parts with wall thicknesses ranging from 2mm to 20mm, and lengths from 30mm to 1200mm, suitable for industries such as automotive, aerospace, and medical. Our high-efficiency automated production line, enhanced by robotic systems, ensures precision and consistency in every production step. With a comprehensive quality assurance system and advanced testing equipment, we ensure that every product meets strict industry standards. Through our MES system, we provide real-time monitoring and data tracking, ensuring transparent, efficient production processes and timely delivery of high-quality die-cast parts that meet customer specifications.
27 +years
Of experience
2500T
Capable of producing
20000 +㎡
Production Workshop
Small Molded Parts with in Days
Our complete CNC aluminum service will accompany your aluminum machining project from the prototype construction to the end aluminum parts manufacturing.
Get a Quote

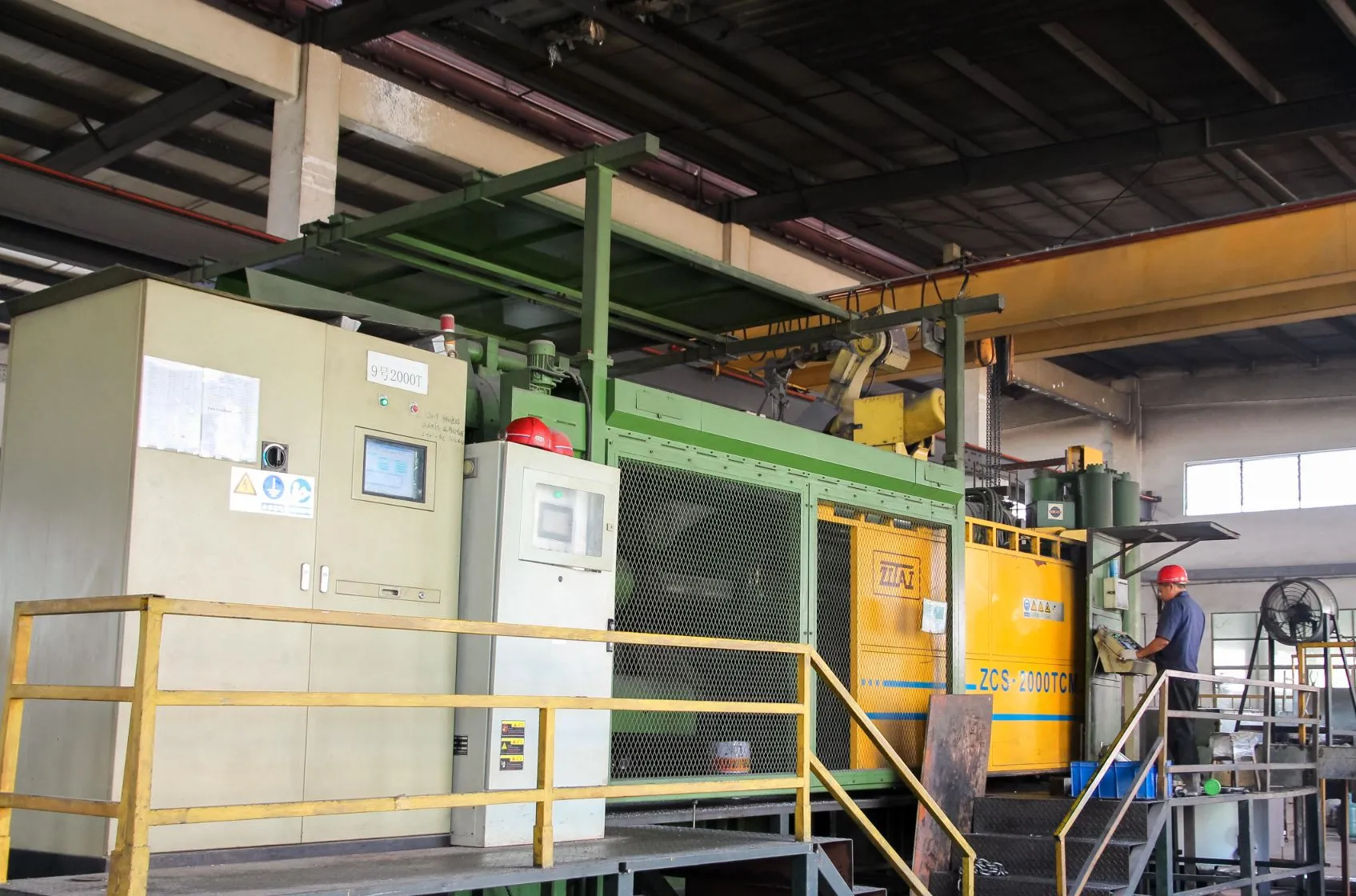

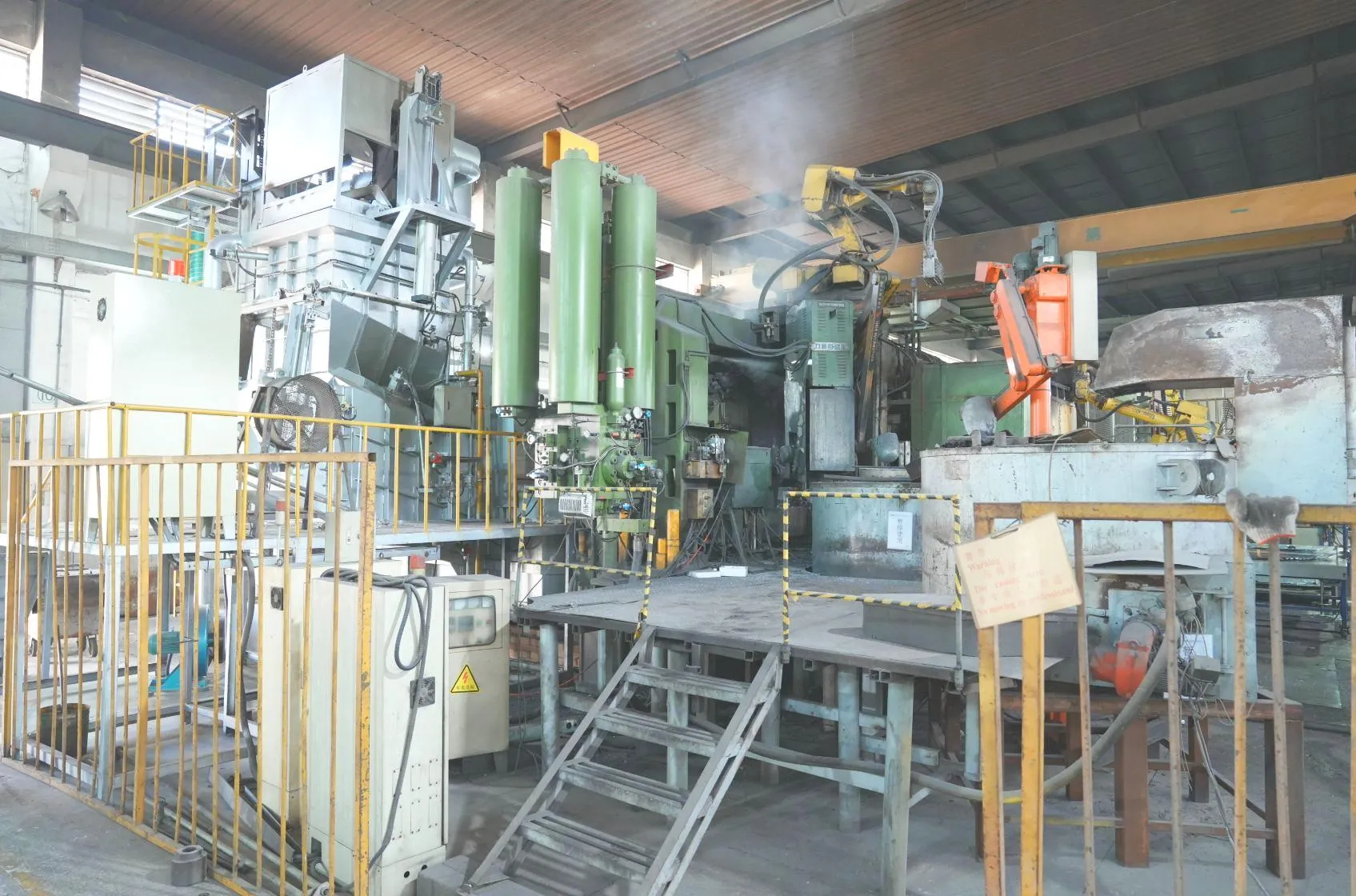

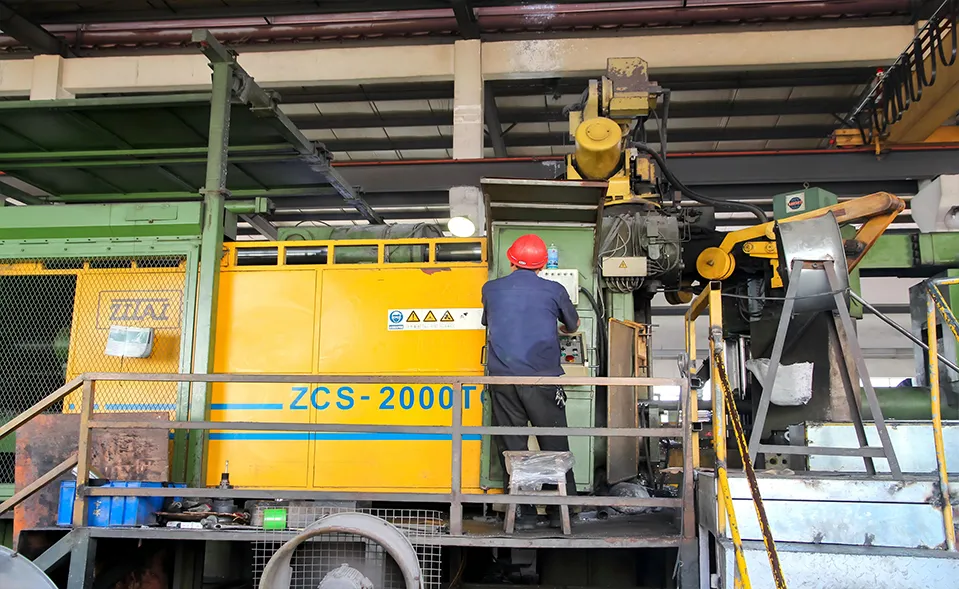

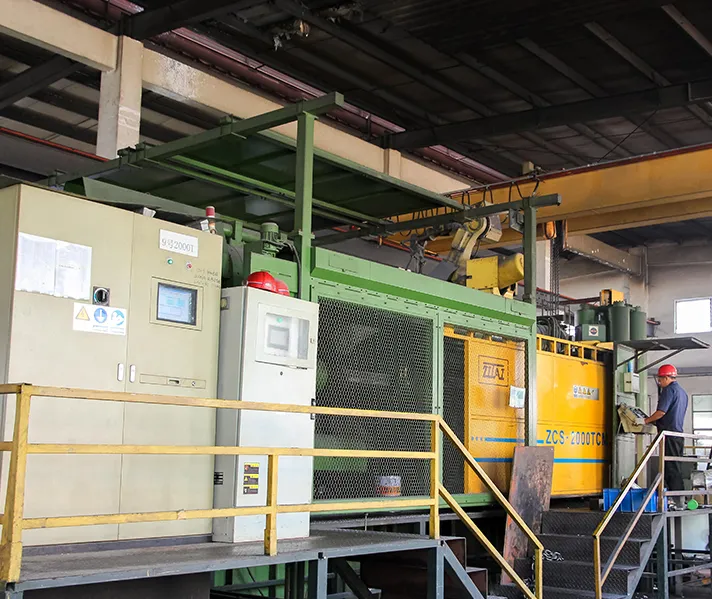

Yuhui Die-casting Machine Equipment

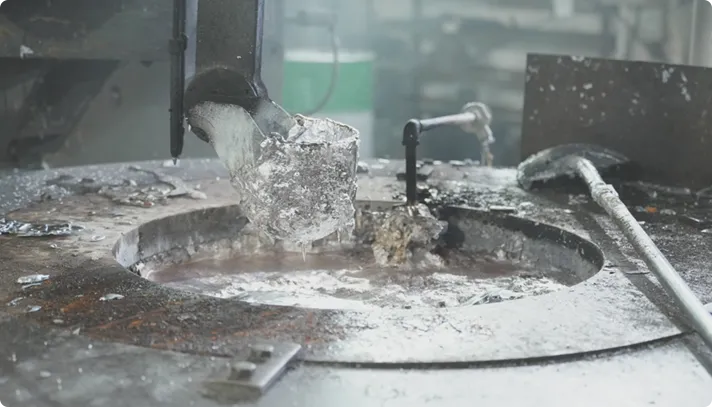

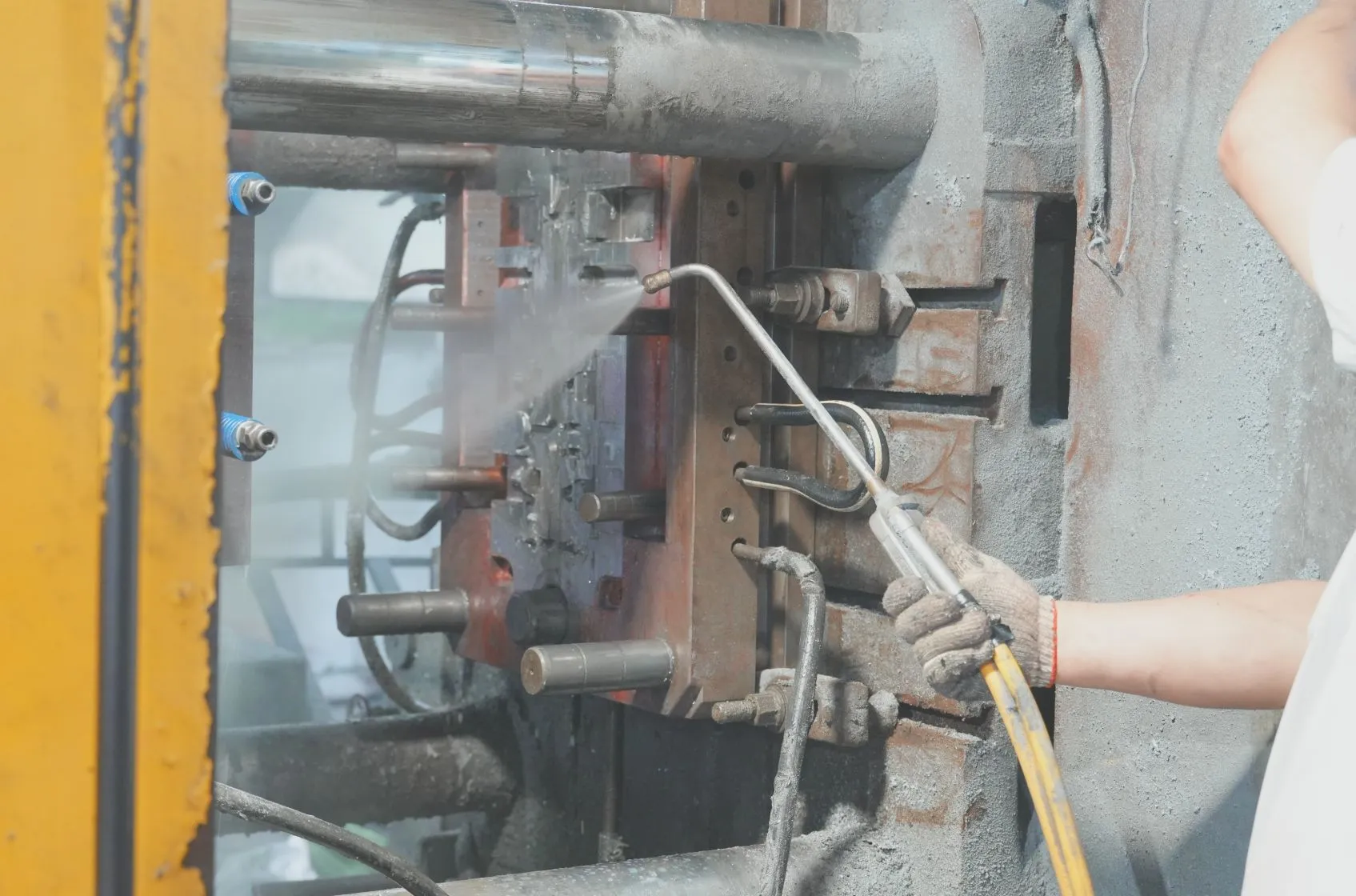

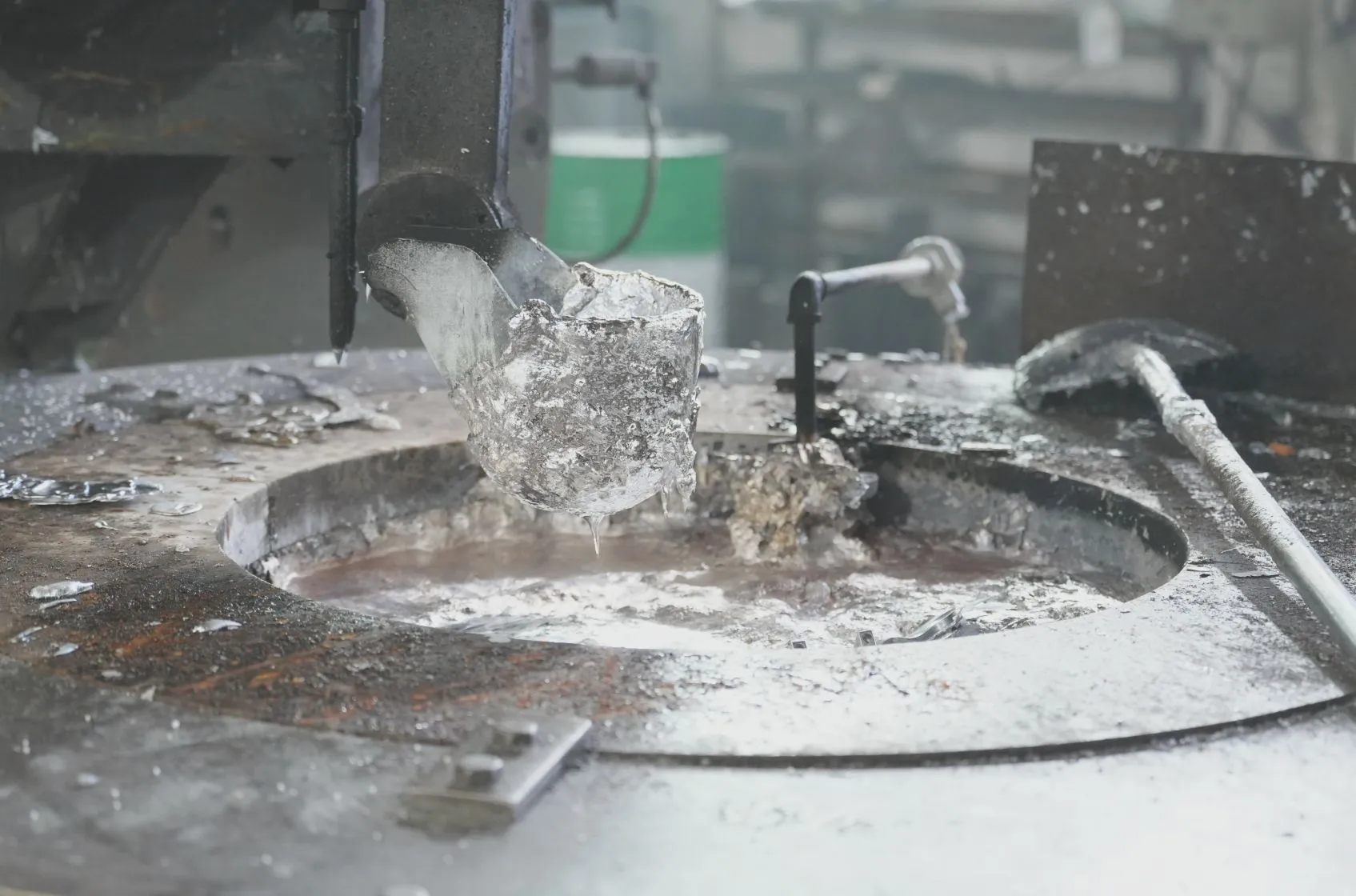

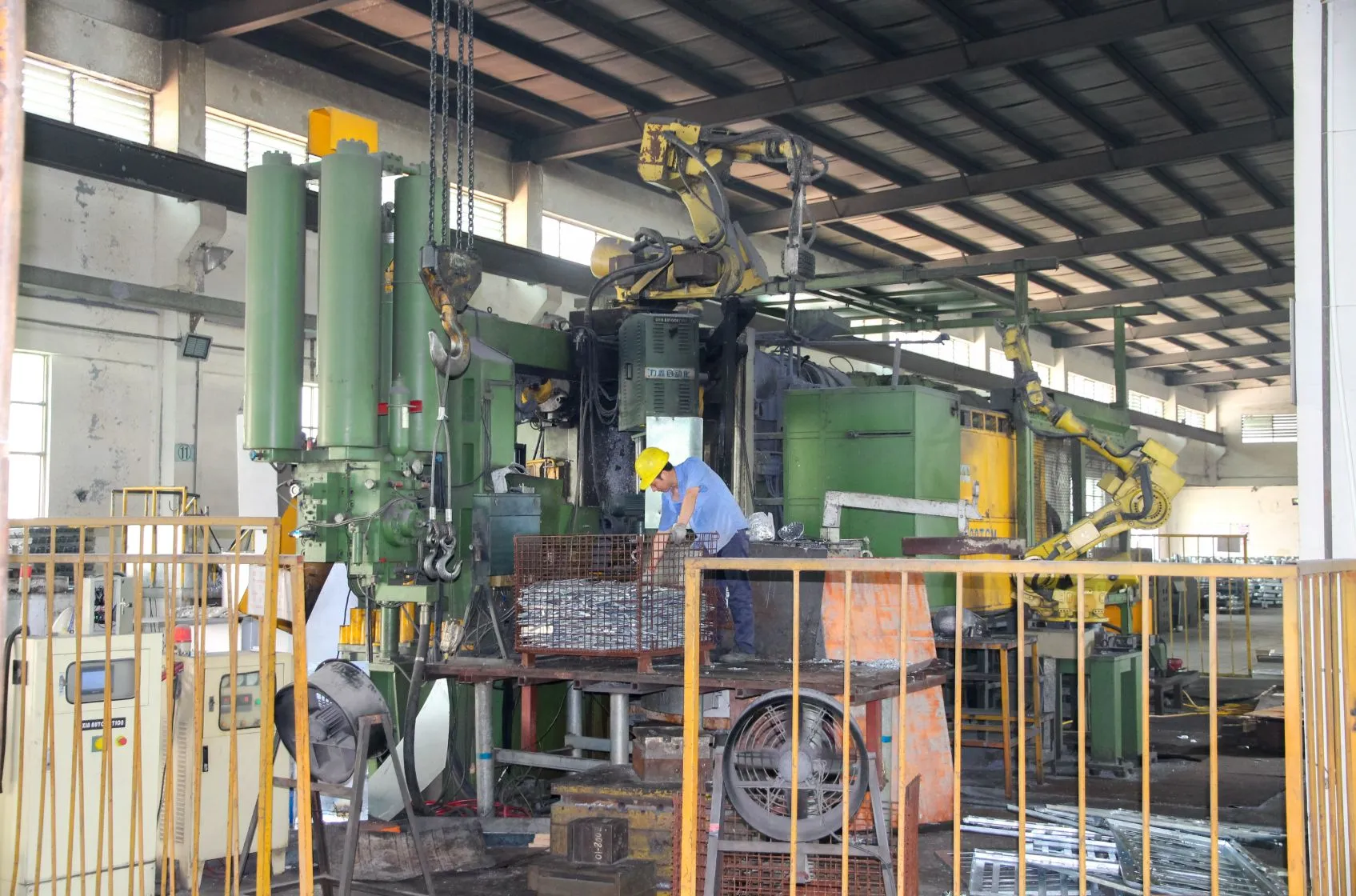

The periphery of the die-casting machine is equipped with various automation equipment such as automatic soup feeding robot arm, robot spraying system, robot picking and embedding system, die-casting cutting and pouring device, die-casting coding machine, rapid mold changing system, product conveying device, intelligent CNC post-processing, etc.
| Machine | Size | Dimensions | Type | Material | Applications |
| Small Die Casting Machine | 88T | 200*100 | Hot Chamber Machine | Aluminum Alloy/ Zinc Alloy | consumer electronics, household appliances, small precision components |
| 180T | 180*80 | Cold Chamber Machine | Aluminum Alloy/ Zinc Alloy | ||
| 280T*2 | 280*180 | Cold Chamber Machine | Aluminum Alloy/ Zinc Alloy | ||
| 350T | 280*180 | Cold Chamber Machine | Aluminum Alloy/ Zinc Alloy | ||
| Medium Die Casting Machine | 420T | 350*250 | Cold Chamber Machine | Aluminum Alloy/ Zinc Alloy | Automotive components, appliance housings, and various industrial parts |
| 560T | 350*250 | Cold Chamber Machine | Aluminum Alloy/ Zinc Alloy | ||
| 800T | 600*500 | Cold Chamber Machine | Aluminum Alloy/ Zinc Alloy | ||
| Large Die Casting Machine | 1000T | 600*500 | Cold Chamber Machine | Aluminum Alloy/ Zinc Alloy | automotive structural parts, aerospace parts, and machinery components |
| 1250T | 700*550 | Cold Chamber Machine | Aluminum Alloy/ Zinc Alloy | ||
| 2000T | 1000*660 | Cold Chamber Machine | Aluminum Alloy/ Zinc Alloy |
Material
Aluminum Alloy
Aluminum casting offers a lightweight, corrosion-resistant solution with excellent thermal conductivity and recyclability, making it suitable for a wide range of applications.
Aluminum ADC12, ADC6, A360, A380
Zinc Alloy
Zinc alloy casting provides high precision and excellent flowability for intricate designs, along with good corrosion resistance and lower production costs.
Zinc Zamak 3, Zamak 5, Zamak 2, ZA8
Eight Processes
High-accuracy aluminum and zinc alloy parts produced with state-of-the-art die casting machines ranging from 88T to 2000T.
Read More
With machines from 88T to 2000T, we produce high-accuracy aluminum and zinc alloy parts efficiently.
Read More
Over 50 CNC machines, including 3-axis, 4-axis, and 5-axis, deliver precise and efficient machining for complex components.
Read More
A combination of manual and automated deburring techniques ensures smooth, defect-free surfaces for optimal performance.
Read More
Post-casting reshaping and alignment guarantee dimensional accuracy and structural integrity.
Read More
Comprehensive finishing solutions, including powder coating, spray painting, and UV coating, ensure superior durability and aesthetics.
Read MoreSolution
Global Partner in Die Casting Solutions
Yuhui & Leading Global Automotive Brand: Crafting Precision Steering Valve Solutions
One of the world's leading automotive brands partnered with Yuhui Die Casting to produce high-performance aluminum alloy components for steering valves.
Read More
Yuhui Die Casting joined forces with a major communications equipment manufacturer to produce aluminum alloy heat sinks for communication base stations.
Read More
Yuhui Die Casting collaborated with a leading global medical equipment manufacturer to produce aluminum alloy enclosures for ultrasound machines.
Read More
Spraying in one, fast switching.
The whole machine is equipped with four pressure centrifugal nozzles with adjustable flow rate located under the motor.
Read More
Precise quantitative and uniform spreading
25L bucket, sowing width up to 8m, sowing speed is 30L/min.
Read More
Field transportation saves time and effort
Quick loading and unloading, efficient transportation, regardless of terrain and distance restrictions
Read MoreProduct
FAQ
Q: What industries do your die-casting services cater to?
+ -A: We specialize in providing high-precision die-casting solutions for automotive, medical, telecommunications, industrial automation, and consumer electronics industries.
Q: What is the tonnage range of your die-casting machines?
+ -A: Our die-casting machines range from 88T to 2000T, enabling us to produce aluminum and zinc alloy parts from small precision components to large structural parts.
Q: How do you prevent porosity in die-cast parts?
+ -A: We utilize vacuum die casting, optimized gating systems, and precise alloy temperature control to minimize internal porosity and enhance material density.
Q: What aluminum and zinc alloys do you use?
+ -A: We commonly use ADC12, A380, AC44300 aluminum alloys, and zinc alloys #3, #5, and #7, with the ability to customize materials based on client requirements.
Q: Can you produce die-cast parts with varying wall thicknesses?
+ -A: Yes, through precise mold design and process control, we manufacture complex parts with wall thicknesses ranging from 1.8~15mm.
Q: How do you control dimensional tolerances in die casting?
+ -A: Maintaining dimensional accuracy between ±0.05mm and ±0.1mm，according to the client needs.
Q: Do you provide post-casting treatments (deburring, CNC machining, coating, etc.)?
+ -A: Yes, we offer one-stop solutions, including deburring, reshaping, CNC machining, powder coating, and electroplating.
Q: How do you ensure the quality of die-cast parts?
+ -A: We conduct X-ray inspection, CMM (Coordinate Measuring Machine) measurements, spectroscopic analysis, and hardness testing to ensure product compliance.
Q: Can your die-cast parts pass salt spray tests?
+ -A: Yes, with appropriate surface treatments, our parts can withstand 48H to 1000H salt spray tests, depending on the coating type.
Q: Do you support die-casting solutions for industries like EVs, power tools, and medical devices?
+ -A: Yes, we provide high-precision die-casting solutions for electric vehicles, telecom base stations, medical equipment, and industrial automation applications.
